Λεπτομέρειες:
|
| όνομα: | Μοριακό κόσκινο της μόνωσης του γυαλιού | Μέγεθος: | διάμετρος 0.3cm |
|---|---|---|---|
| ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ: | Υψηλής αντοχής, υψηλή ικανότητα προσρόφησης, ομοιομορφία μορίων | ||
| Υψηλό φως: | glass filling machine,desiccant filler |
||
Process flow:
Washing→Filterpressing→Crushing→Forming→Health maintenance→Drying→Activation
Technical Parameter:
| Model | 5A Molecular Sieve | |||
| Nominal pore diameter | 5 angstroms | |||
| Shape | Sphere | Pellet | ||
| Diameter | 1.7-2.5 (mm) | 3.0-5.0 (mm) | 1.6 (mm) | 3.2 (mm) |
| 8*12 (mesh) | 4*8 (mesh) | 1/16 (inch) | 1/8 (inch) | |
| Bulk density (g/ml) | ≥0.66 | ≥0.66 | ≥0.64 | ≥0.64 |
| Crushing strength (N/PC) | ≥30.0 | ≥70.0 | ≥30.0 | ≥50.0 |
| Size ratio up to grade (%) | ≥96.0 | ≥96.0 | ≥96.0 | ≥94.0 |
| Static H2O adsorption (%) | ≥21.0 | ≥21.0 | ≥20.5 | ≥20.5 |
| Static Hexane adsorption (%) | ≥12.0 | ≥12.0 | ≥12.0 | ≥12.0 |
| H2O content (%) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
| Wear ratio (%) | ≤0.20 | ≤0.20 | ≤0.40 | ≤0.40 |

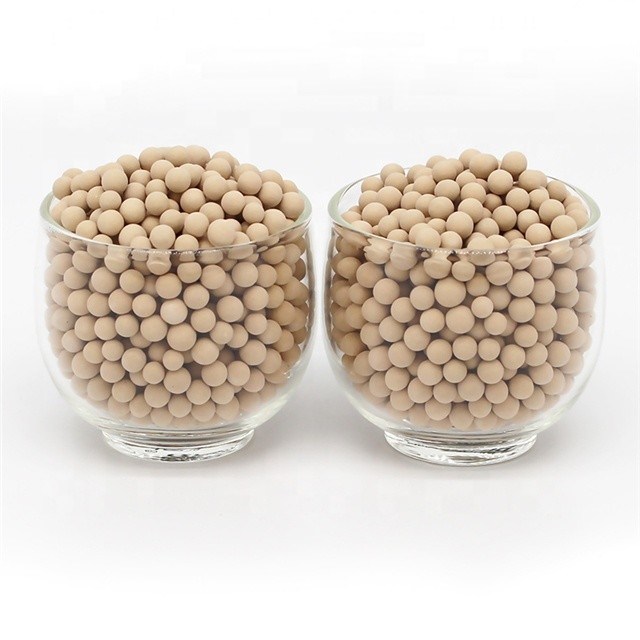

5A Molecular Sieve, has an effective pore opening of 5 angstroms(0.5nm).
It will adsorb molecules with a kinetic diameter of less than 5 angstrom and exclude those larger.
It has high select adsorption and fast adsorption speed.
Typical Application:
a) The various sizes of O2, H2, CO2 and other gas PSA devices.
b) Separation of normal paraffin and isoparaffin.
c) The purification of air, dehydration and carbon dioxide removal.
d) The drying of natural gas, dehydration and desulphurization.
Characteristics:High strength,High adsorption capacity,Pa

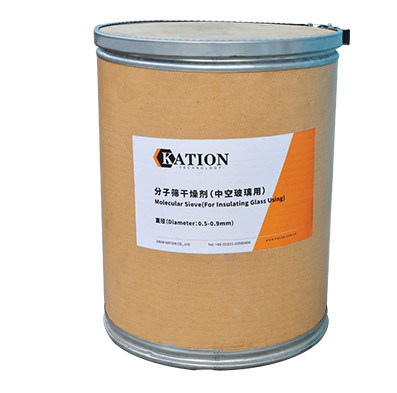

Paper bag, super sack, steel drum with wooden pallet for zeolite 3a
Port:Qingdao,Tianjing, Shanghai, etc.
Lead Time:7-10 days after receiving your deposit or your workable LC
Main feature
· Germany Siemens PLC control system
· Touching screen interface, simple and visible
· Fill for bending frame and connected frame
· Auto desiccant loading function
· Filling time can be adjusted
· Auto drilling, filling and sealing function
Main technical parameter
| Filling aluminum frame’s maximum size | 2000mm*2000mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
