Τόπος καταγωγής:
ΚΙΝΑ
Μάρκα:
Lijiang
Πιστοποίηση:
CE
Αριθμό μοντέλου:
LJZW2020

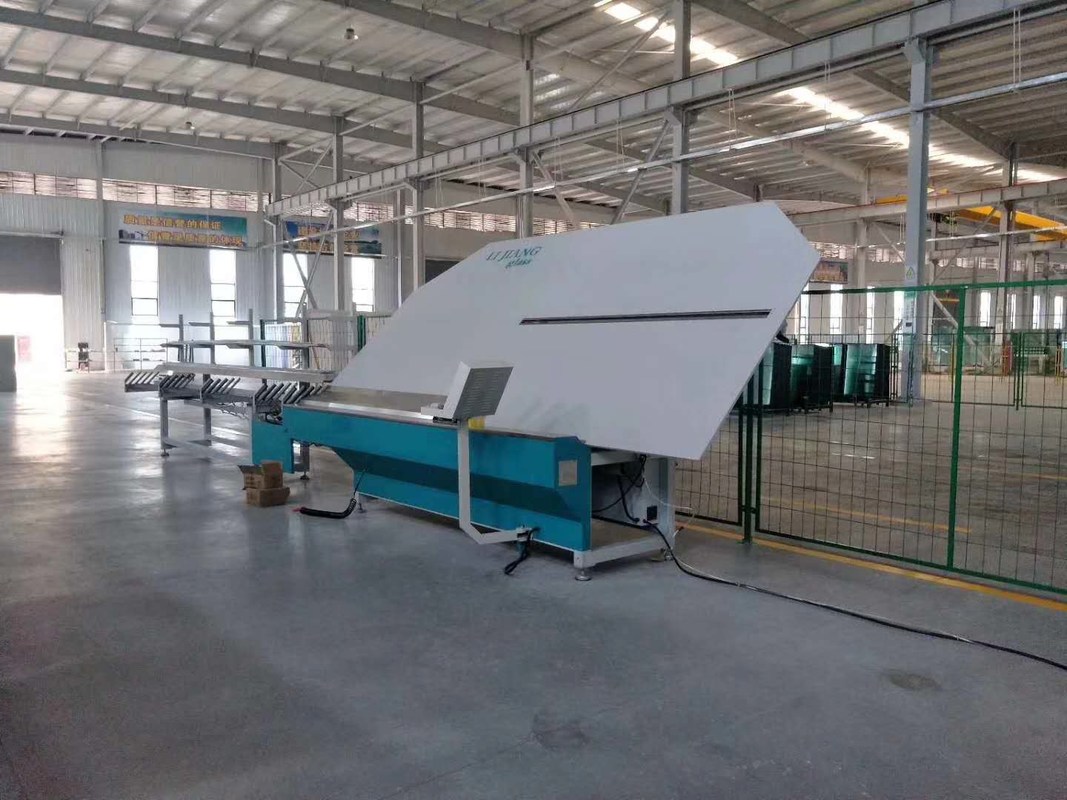

The automatic spacer bending machine is a special tool for making aluminum frames from insulating glass, which replaces the traditional fabricated technology. These tools can create various convex polygon aluminum frames with a strip of aluminum at once, thus strengthening the strength of the aluminum frame and enhancing the insulating glass sealing effect.
Equipment details
Take control of Siemens plc
There are 4 Siemens servos here.
It uses 4 sets of shelves that can hold spars of different sizes. Use Siemens servo to replace various shelves.
Aluminum spacers are cut and operated automatically.
Continuous curved spacer frame
Automatically prevents connection angles when folding or unplugging
Instead of snatching the spacer from the bottom, the machine handles it from the top, solving the ancient flip problem.
It uses industrial technology computers that allow industrial computer workers to draw and fold directly drawn graphics.

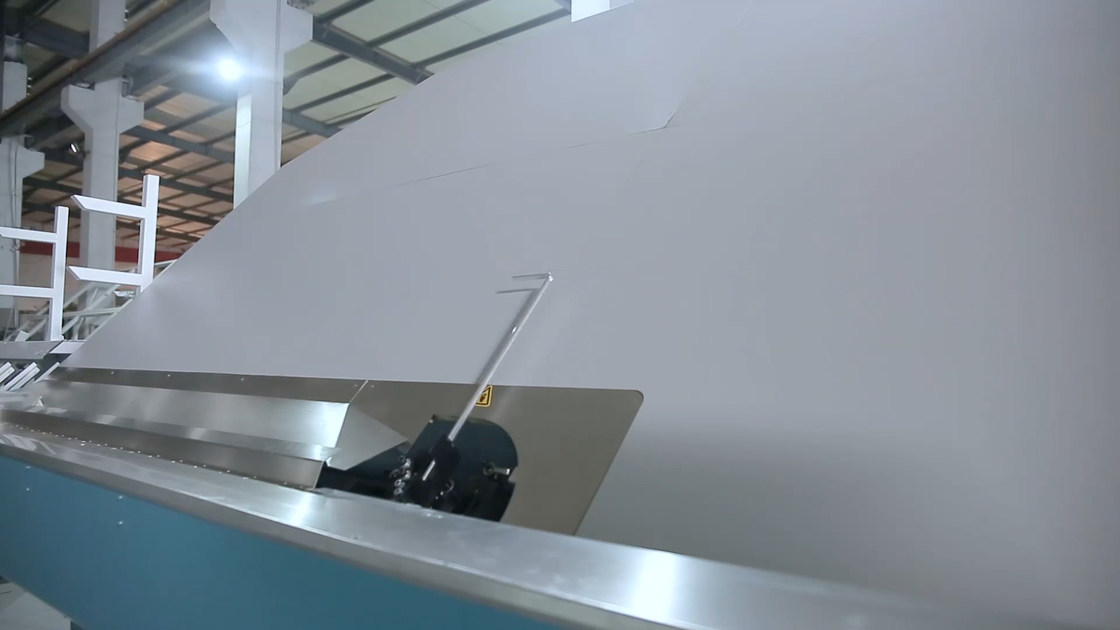

Fold the gaps using special mechanical hand tools.
Technical data
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Leading Technology
Company Information
Electrical parameters
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
| Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
