Glazed Glass Sealant Sealing Line For Insulating Glass making


     ►Description of Glazed Glass Sealant Sealing Line

This type of machine is a fully automatic and efficient sealing robot for the production of insulated glass. Linear adjustment automatically measures glue depth, glass size, and glue speed. The ceiling line can be coated with more than eight types of specially shaped glass, including trapezoidal and semi-circular. parallelogram. Round. Single-function parts such as polygons have a manual function and are easy to adjust.

     ► Detail of insulating glass sealant robot

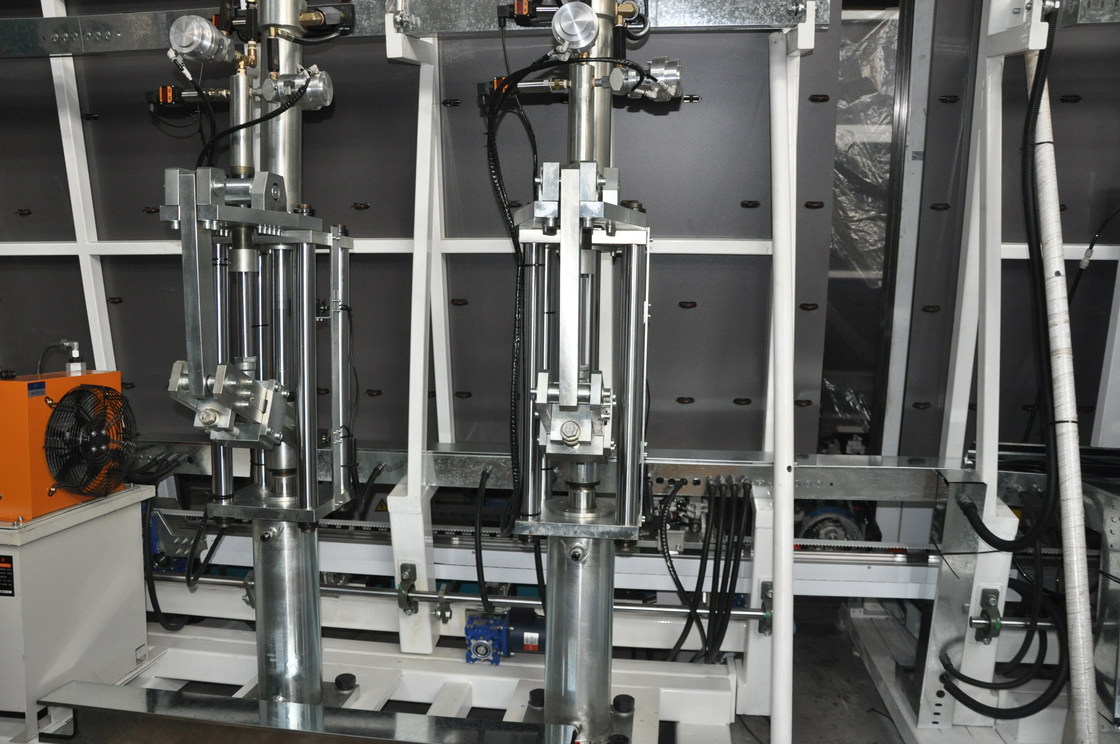

►►►Tow pump syetem( optional )

Equipped with two sets of A components and two sets of B components that can be used for two different types of sealants such as silicone rubber, polysulfide rubber, and silicone structural adhesive.

►►►Electrical parts Showing
​

The robot uses eight YASKAWA servos, four of which control transmission components, and four of which control suckers, lifts, drives, and reversing mechanisms and rotations.
Main electrical parts adopt famous spares such as Siemens and SMC to maintain more stable performance.


►►►Sealing head showing




► Feature of insulating glass sealing machine

• l Minimum and maximum glass sizes are optional
• l Eight servo motors adopted
• l Linear adjustment automatically measures glass size, glue depth, glue speed

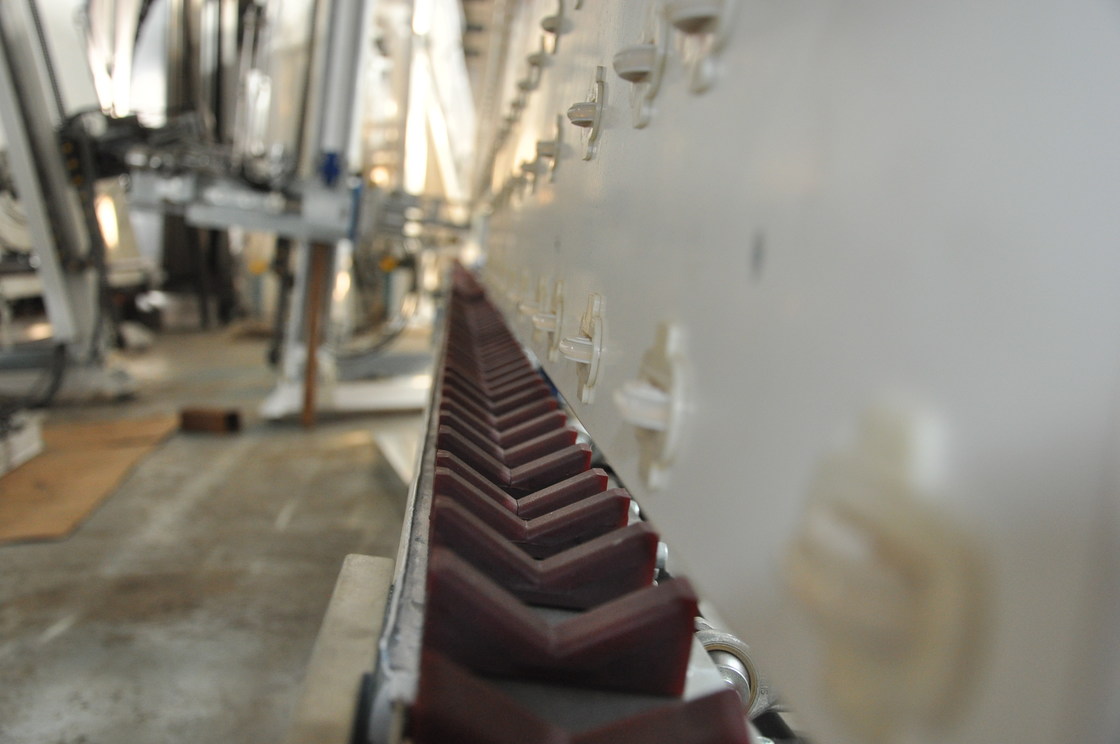

• l Uses a timing belt to maintain smooth transportation at the correct position
• l Adopt Japan ANCHUAN servo control system with stable performance
• l Spares are produced with high standardization and high precision, making sure the machine can be used for long-term work
• l The corner of the glass is bubble free and does not need to be filled with a smooth surface
• l Fully automatic high efficiency machine
• l Especially for scraper new design, especially for making train IG with very uniform sides and corners without bubbles or bubbles.
• l Automatically repairs beautiful glass corners
• l Smooth transport without scratches or contamination
• l Single function parts are equipped with manual function, easy adjustment
• l 4 step type IG unit (optional)
• l shaped IG unit (optional)

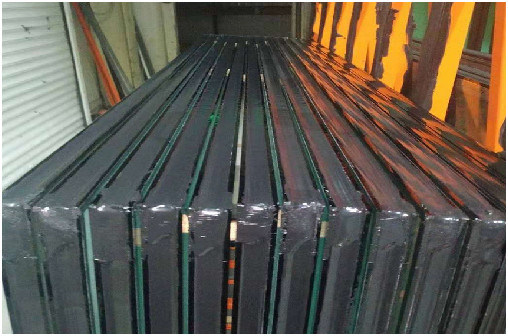

• l Double and triple IG units


►Main technical parameter
