Λεπτομέρειες:
|
| Όνομα: | Αυτόματη μονώνοντας διπλή τριπλή υαλουργική μηχανή παραθύρων τοποθέτησης υαλοπινάκων | Παροχή ηλεκτρικού ρεύματος: | 380V, 50HZ ή προσαρμοσμένος |
|---|---|---|---|
| συνολική δύναμη: | 40 KW | Ταχύτητα πλύσης: | 2-10m/min |
| Πίεση αέρα: | 0.5~0.8Mpa | ||
| Υψηλό φως: | μηχανές επεξεργασίας γυαλιού,μονώνοντας γραμμή γυαλιού |
||

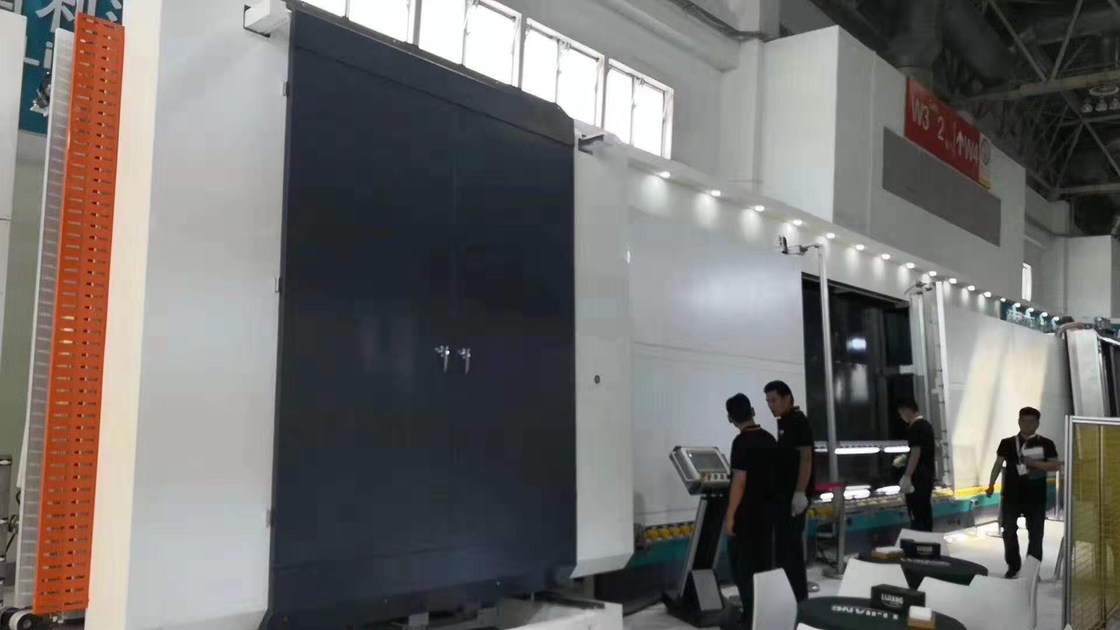

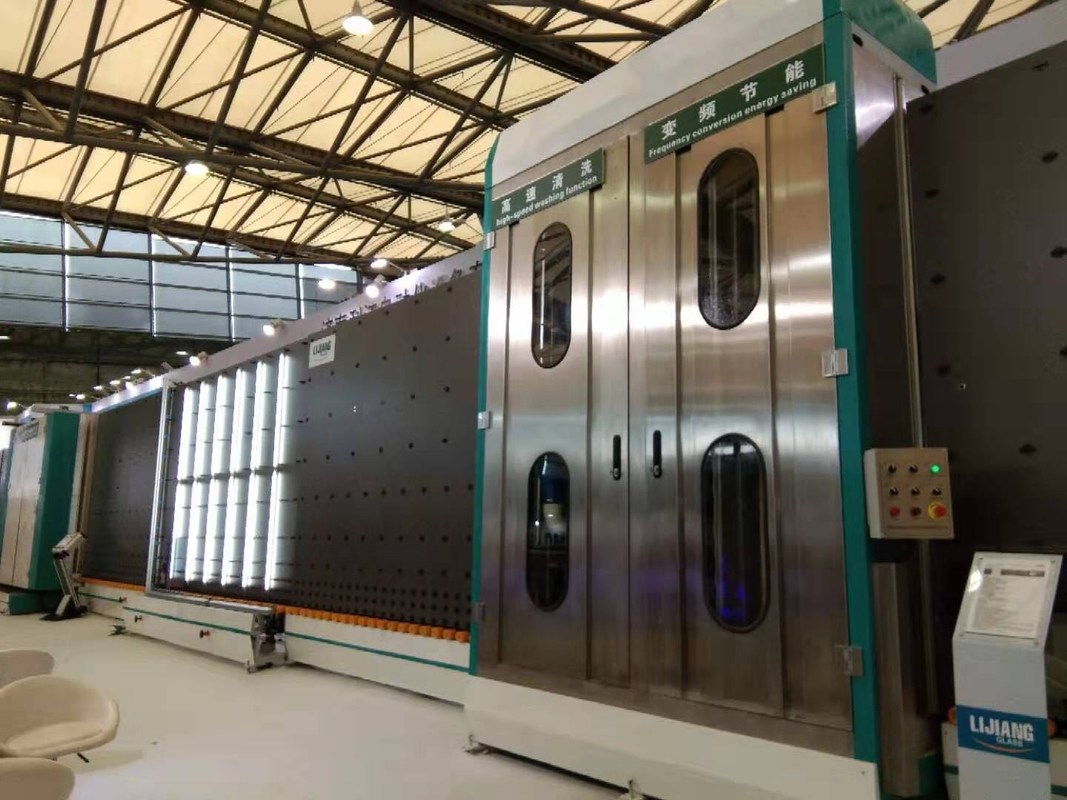

Automatic Insulating Double Triple Glazing Window Glass Making Machine
Insulation glass machine can complete the following functions: Glass cleaning, aluminum frame placement, ordinary double glass, three ordinary glasses, shaped glass and double double glass press.
Insulation glass machine is a special equipment in the manufacture of aluminum strip insulation glass, which has the advantages of small footprint, high efficiency, reliable performance and easy maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
Control PLC, touch screen man-machine interface.
-Automatic identification of coated glass and LOW-E glass film layer.
-The application of the imported vacuum generator and suction cup improves the glass capture effect.
-Three pairs of glass cleaning brush rotation speeds can be driven by frequency conversion.
-Big-small and three layers of hallow glass can be produced according to customer's requirement.
-Digital control assembly line to save production time and improve efficiency.
-The protection panel has been sprayed with plastic to achieve a beautiful appearance and durable durability.
-The cleaning machine is made with stainless steel and durable material.
-All electrical appliances are selected from the famous international brand.
-The press section can be pushed to 450mm with large stroke to make it convenient for maintenance.
-When the plate press adopts the central position for the external junction.
-Free alternative between internal and external conjunction.
-The press section adopts the opening door style for convenient overhaul and maintenance.
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
Q: What's the payment term?
A: T / T, L / C and other payment terms could be negotiated.
Q: About this machine, what is the warranty?
A: 1). Our warranty for 12 months.
2) 24/7 technical support via email or call
3). English manual and video tutorial
4). We will supply the consumables at an agency price
5) .24 hours online service every day, free technical support.
Q: How about your warranty?
A: Generally, our warranty is one year. During the warranty period, we can offer technical support, feedback within 24 hours and help you to repair the problem controller freely, even if it is not from our factory
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
