Λεπτομέρειες:
|
Πιστοποίηση: | BV & SGS & BV | Όνομα: | Μονωμένη γυαλιού γραμμών παραγωγής αυτόματη μηχανή γυαλιού CE μονώνοντας |
---|---|---|---|
Παροχή ηλεκτρικού ρεύματος: | 380V, 50HZ ή προσαρμοσμένος | Ταχύτητα πλύσης: | 2-10m/min |
Υψηλό φως: | γραμμή παραγωγής γυαλιού 50mm μονώνοντας,2m/Min μονώνοντας γραμμή παραγωγής γυαλιού,μηχανή γυαλιού διπλής τοποθέτησης υαλοπινάκων 50mm |

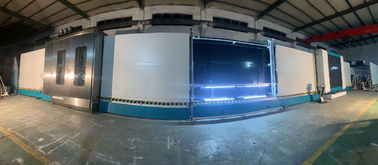

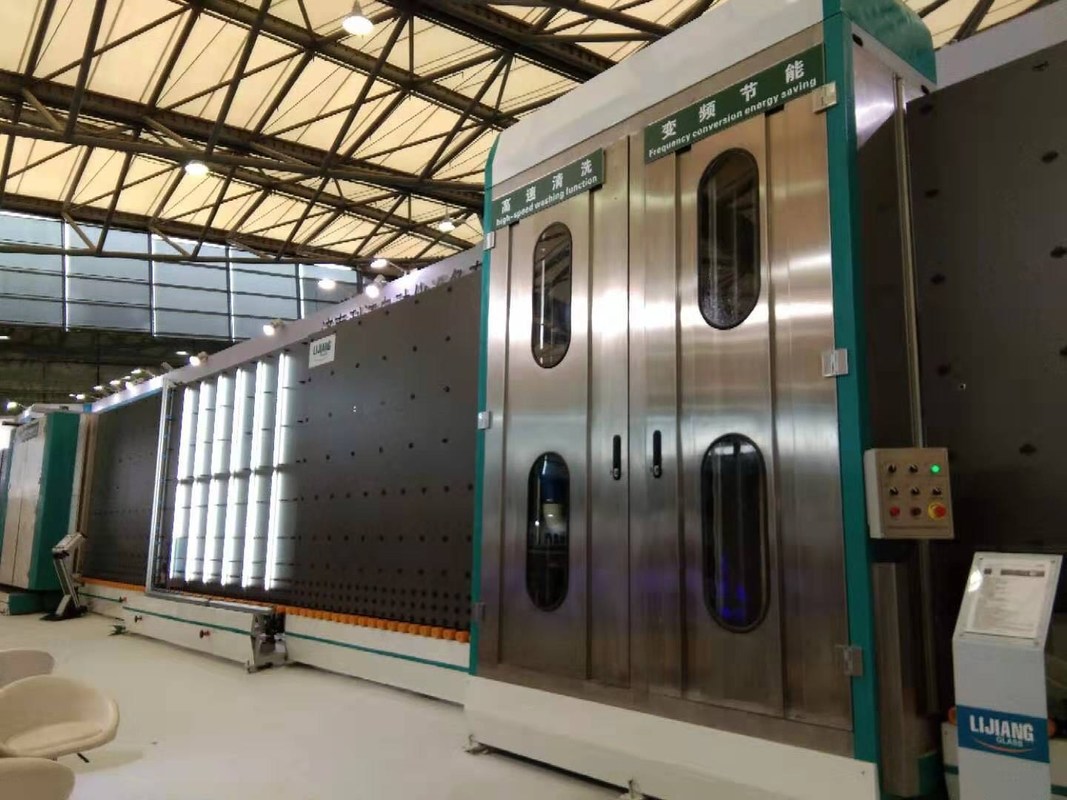

Insulated Glass Production Line Automatic CE Insulating Glass Machine
The Insulatiing screen completes the following functions: Clean glass; Aluminum frame placement; Regular double glazing; Three ordinary ones; Double tap the shape glass and the second glass.
Insulatiing glass machine High performance; It is a specialized equipment for the production of aluminum shields with the advantage of reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, simple and intelligent operation;
2, the well-known brand of major components in the world, ensure stable operation and long life;
3, Designed for processing high quality glass, such as reflective glass, Low-E glass, tempered glass and laminated glass;
4, large glass processing scale, various models and customization available;
5, large output capacity, 1,000pcs output in one working day;
6, Can be used for double layer, triple layer, stepping sheet and insulation glass of abnormal shape;
7, automatic argon air gas filling during the glass sheet installation process;
8, PLC control system, touch screen operation;
Electrical parameters
NAME | ORIGIN | BRAND |
Transfer motor | Germany | SIEMENS |
Brush motor | Germany | SIEMENS |
Servo motor | Germany | SIEMENS |
PLC | Germany | SIEMENS |
Low voltage electrical appliance | Germany | SIEMENS |
Frequency converter | Germany | SIEMENS |
Micro Switch | Taiwan | TEND |
Button and indicator light | France | SCHNEIDER |
Touch screen | Taiwan | WEINVIEW |
Intermediate relay | Japan | OMRON |
Water pump | China | LINGXIAO |
Guide | Taiwan | HIWIN |
Pneumatic Components | Taiwan | AIRTAC |
Electric gauge | China | MIRAN |
Photoelectric switch | Korea | AUTONICS |
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD |
Power Supply | 380V,50HZ or customized |
Total Power | 40 KW |
Washing Speed | 2-10m/min |
Max. working speed | 45m/min |
Min.Glass size | 450*280mm |
Max. Glass size |
2500*3200 2500*4500(second pressing) |
Washing glass thickness | 3-15mm |
Max. Insulating glass thickness | 50mm |
Weight | 8000kg |
Dimension (L*W*H) | 23600*3500*3700mm |
